A thermal camera drone reads heat instead of light, so it sees what the eye and a normal camera cannot: a person in the dark, a failing solar cell, heat leaking from a roof, or an animal hidden in brush. Whether you call it a thermal drone, an infrared camera drone, or a heat-camera UAV, the technology is the same, and it has become one of the most valuable tools in inspection, public safety, and search and rescue. This guide explains how thermal imaging works, the specs that actually matter, and the best thermal camera drones you can buy in 2026.
How a thermal camera drone works
Every object gives off infrared radiation in proportion to its temperature. A drone with an infrared camera detects that radiation and turns it into a visible image, where hotter areas show bright and cooler areas show dark. Because it measures heat and not visible light, a thermal drone works in total darkness, through smoke and light foliage, and in glare where a normal camera struggles. A radiometric thermal camera goes a step further and records the actual temperature of every pixel, so you can measure a hot spot, not just see it.
The specs that matter
- Thermal resolution. This is the single most important spec. A 640x512 sensor resolves detail at real range far better than a 320x256 sensor. For serious inspection, recovery, and public-safety work, 640 is the standard to aim for.
- Radiometric measurement. If you need to quantify temperature (electrical faults, solar cells, mechanical wear), confirm the camera is radiometric, not just a thermal viewer.
- A paired visual camera and zoom. A high-resolution wide camera plus zoom lets you confirm what a heat signature actually is without getting closer.
- Frame rate. 30 Hz gives smooth, usable video when you are flying and tracking; some export models are capped lower.
- Flight time and build. Longer endurance covers more ground per battery, and a weather-sealed body keeps you flying in the conditions where thermal matters most.
The best thermal camera drones in 2026

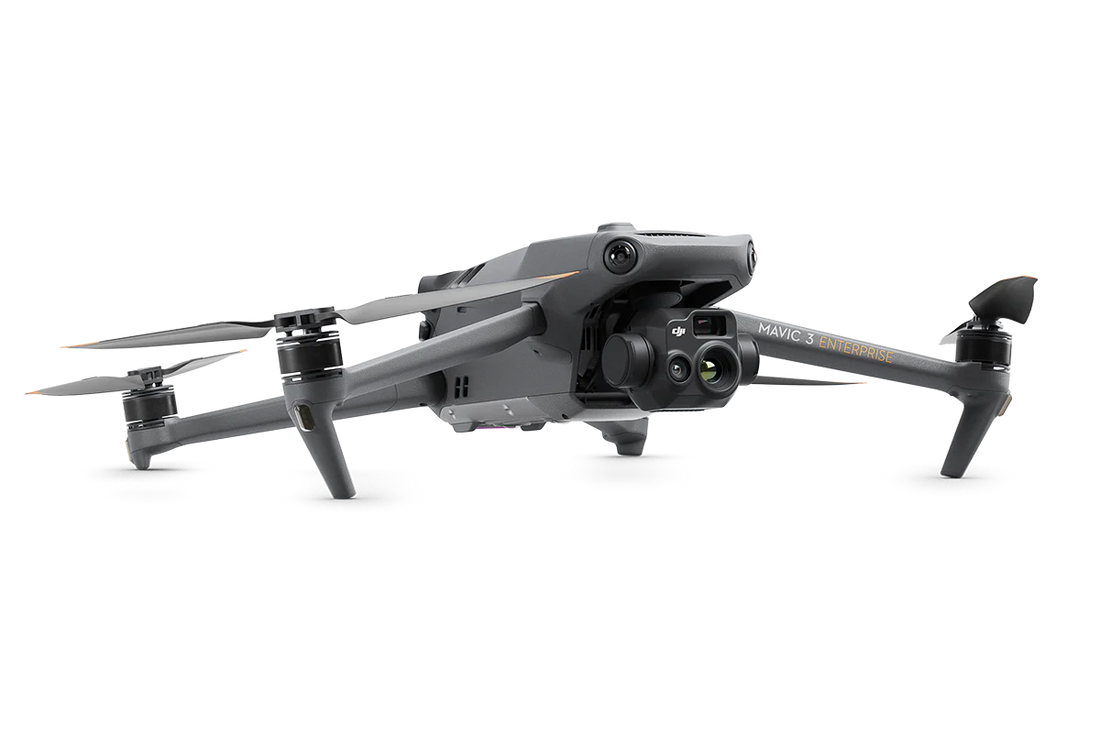

DJI Mavic 3 Thermal (M3T): the portable all-rounder
The DJI Mavic 3 Thermal pairs a 640x512 radiometric thermal sensor at 30 Hz with a 48 MP wide camera and 56x zoom, all under 1 kg with up to 45 minutes of flight. It is the most popular thermal drone with an infrared camera for inspection, mapping, and night operations because it is light, fast to deploy, and easy to travel with.
DJI Matrice 30T (M30T): the rugged workhorse
The DJI Matrice 30T adds a 640x512 thermal camera, a 48 MP zoom up to 200x, a 1200 m laser rangefinder, and an IP55 weather-sealed body. It is the pick for larger sites, public safety, and demanding conditions where you need reach and durability.
Autel EVO II Dual 640T: the high-value alternative
The Autel EVO II Dual 640T is a strong 640 thermal platform with a high-resolution visual camera, and a capable option for teams that want an alternative to DJI.
See the full lineup in our thermal drones collection, and compare the top picks in our best thermal drones buyer's guide.
What thermal camera drones are used for
- Building and roof inspection: find heat loss, moisture, and insulation gaps.
- Solar and electrical: spot failing panels, hot connections, and overloaded components with a radiometric camera.
- Search and rescue: locate people day or night by their heat signature. See our search and rescue drones.
- Public safety and firefighting: map hot spots, see through smoke, and run safer night operations.
- Industrial and utility inspection: read our guide to thermal drones for inspection and how they compare to RGB and LiDAR in choosing the best inspection drone.
Frequently asked questions
What thermal resolution do I need?
A 640x512 radiometric sensor is the practical standard for professional work. It resolves a heat signature at usable range far better than a 320 sensor, which is why the Mavic 3 Thermal, Matrice 30T, and Autel EVO II Dual 640T are the common choices.
Do thermal drones work in daylight?
Yes, but contrast is strongest when the background is cool, so dawn, dusk, and night give the clearest results. In the heat of the day the ground warms and thermal contrast drops.
Can a thermal drone measure temperature?
Only if it is radiometric. A radiometric thermal camera records the temperature of every pixel so you can quantify a fault; a non-radiometric camera only shows relative heat. All three models above offer radiometric options.
What is the difference between a thermal and an infrared camera drone?
They are the same thing. "Thermal camera," "infrared camera," and "heat camera" all describe a sensor that images long-wave infrared radiation given off by warm objects.
Choose the right thermal platform
Whether you inspect buildings and solar, run public-safety missions, or recover people and animals after dark, a 640 thermal camera drone changes what is possible. Browse the Scanixx thermal drones collection, explore our public safety, SAR and thermal solutions, or email info@scanixx.com and we will match a thermal platform to your work. Free US shipping on orders over $599.
