Short answer: a heavy-lift drone is a multirotor built to carry cargo rather than just a camera, typically 40 lbs (18 kg) or more. In the DJI lineup, the DJI FlyCart 30 carries up to 66 lbs (30 kg) in its standard dual-battery setup and covers up to 9.9 mi (16 km) with that load, while the FlyCart 100 carries up to 187 lbs (85 kg) over shorter legs of up to 7.5 mi (12 km). Choose the FlyCart 30 for longer, lighter runs and the FlyCart 100 when the payload itself is the bottleneck.
This guide explains where cargo drones earn their keep, compares the two FlyCart platforms on manufacturer specifications, outlines what a complete system costs, and covers the FAA questions every operator should settle before the first delivery flight.
What Is a Heavy-Lift Drone?
Most enterprise drones are sensor platforms: they carry a thermal, zoom or LiDAR payload that weighs a few pounds. A heavy-lift or cargo drone is engineered around the payload instead. It has larger motors and propellers, high-capacity batteries, redundant systems and a dedicated way to carry and release goods, usually a cargo case, a fixed lifting rope or a powered winch.
That design changes the economics of short-range logistics. Where a crew would otherwise hike, drive a side-by-side over rough ground or charter a helicopter, a cargo drone can fly a load point to point in minutes and return for the next one.
Where Cargo Drones Pay Off
Heavy-lift drones make the most sense where the distance is short but the terrain is difficult. Typical use cases include:
- Powerline and tower work: moving tools, insulators, stringing lines and hardware to structures on ridgelines or across rivers.
- Construction and infrastructure: supplying materials to remote sites, rooftops or steep slopes without building access roads.
- Mountain and backcountry resupply: supporting huts, survey crews, trail work and remote research stations.
- Offshore and coastal logistics: ship-to-shore and island resupply of parts and consumables.
- Emergency response and search and rescue: delivering medical kits, water, radios or flotation where ground access is cut off.
- Agriculture and forestry: moving equipment, seedlings or samples across large or rugged properties.
The common thread is repetition. A single delivery rarely justifies the investment; dozens of runs per week, each replacing a vehicle trip or a crew hike, usually do.
DJI FlyCart 30 vs FlyCart 100: Specifications Compared
Both aircraft come from DJI's delivery line and share core safety concepts: obstacle sensing, dual-battery redundancy and a built-in parachute. The table below uses DJI's published specifications.
| Specification | DJI FlyCart 30 | DJI FlyCart 100 |
|---|---|---|
| Max payload (dual battery) | 66 lbs (30 kg) | 187 lbs (85 kg) |
| Max payload (single battery) | 88 lbs (40 kg) | Single-battery mode intended for emergency use |
| Max takeoff weight | 209 lbs (95 kg) | 375 lbs (170 kg) |
| Max flight distance | 17.4 mi (28 km) empty; 9.9 mi (16 km) with 66 lbs (30 kg) | 7.5 mi (12 km) dual battery, under 330 lbs (149.9 kg) takeoff weight |
| Max flight time | 18 min with 66 lbs (30 kg), dual battery | 14 min dual battery, under 330 lbs (149.9 kg) takeoff weight |
| Max horizontal speed | 45 mph (20 m/s) | 45 mph (20 m/s) |
| Ingress protection | IP55 | IP55 |
| Wind resistance | 27 mph (12 m/s) | 27 mph (12 m/s) during takeoff and landing |
| Operating temperature | -4 to 113 degrees F (-20 to 45 degrees C) | -4 to 104 degrees F (-20 to 40 degrees C) |
| Delivery options | Cargo case or winch with 66 ft (20 m) cable | Lifting system with 33 ft (10 m) rope or Flagship Winch up to 98 ft (30 m) |
| Sensing and safety | Radar, binocular vision, parachute | LiDAR, millimeter-wave radar, quad-vision, ADS-B receiver, parachute |
Performance figures are manufacturer maximums measured under defined test conditions. Real-world range and endurance drop with wind, temperature, altitude and payload shape, so plan routes with a margin.

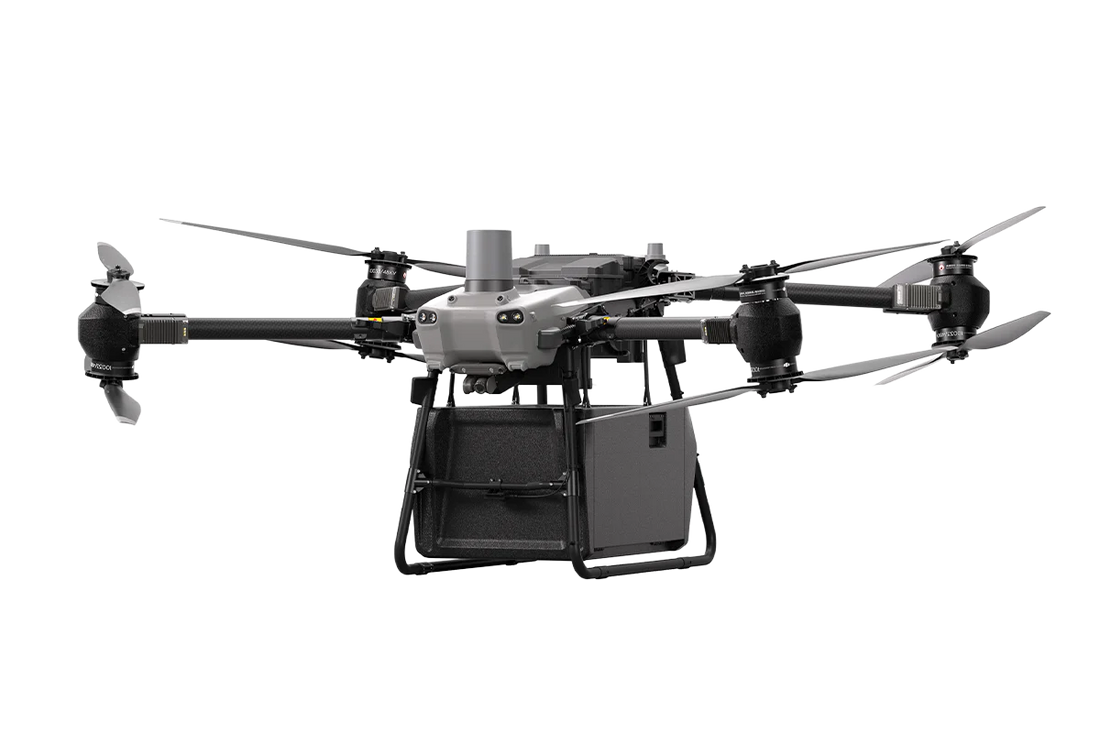

DJI FlyCart 30: The Long-Leg Workhorse
The FlyCart 30 has been on the market longer and has the broader operating envelope. Its strength is distance: with a 66 lb (30 kg) load it is rated for up to 9.9 mi (16 km), which covers most ridge-to-valley, ship-to-shore and site-to-site routes. Two delivery modes are available: an enclosed cargo case of about 18.5 gal (70 L) for loose items, and the optional FlyCart 30 Winch System Kit, which lowers loads on a 66 ft (20 m) cable and releases them without the aircraft landing.
It is the better fit when loads are moderate, routes are longer, and the operator values a proven platform with an established accessory ecosystem of DB2000 batteries, a battery station and a dual-operator controller.
DJI FlyCart 100: When the Load Is the Bottleneck
The FlyCart 100 is DJI's answer to heavier logistics. It uses a coaxial eight-rotor layout with 62 in (1,575 mm) carbon-fiber propellers and is rated for up to 187 lbs (85 kg) of payload in the dual-battery configuration. The trade-off is range: 7.5 mi (12 km) under DJI's stated test weight, roughly half the empty-range figure of the FlyCart 30.
Its sensing suite is more extensive, adding LiDAR and an ADS-B receiver for awareness of nearby crewed aircraft. For delivery it pairs with either a lifting system on a 33 ft (10 m) rope or the Flagship Winch System with up to 98 ft (30 m) of cable, which suits drops into tree cover, onto towers or onto vessel decks. Scanixx offers it as an aircraft-only listing, a Ready-to-Fly Basic Kit and a Ready-to-Fly Kit with Winch.
How to Choose: A Practical Checklist
- Define the typical load, not the maximum. If 80 percent of your runs are under 66 lbs (30 kg), the FlyCart 30 covers them with more range. If your routine loads are 100 lbs (45 kg) or more, only the FlyCart 100 is in scope.
- Measure the route. Map the longest round trip you need, including climb, and keep a reserve. Short, heavy legs favor the FlyCart 100; longer legs favor the FlyCart 30.
- Decide land or no-land delivery. If the drop zone has no safe landing area, budget for a winch from day one.
- Plan battery rotation. Flight times are measured in minutes, so throughput depends on how many battery sets you can charge in parallel and on available generator or grid power at the launch site.
- Check procurement rules. Both FlyCart models are DJI aircraft. Organizations bound by NDAA or agency procurement restrictions should confirm eligibility first. Our DJI ban explainer summarizes the current situation.
What Does a Heavy-Lift Drone Cost?
Hardware is only part of the budget. At the time of writing, Scanixx lists the following:
| Item | Listed price (at the time of writing) |
|---|---|
| DJI FlyCart 30 Delivery Drone | $20,889 |
| DJI FlyCart 30 Winch System Kit | $4,389 |
| DJI FlyCart DB2000 Intelligent Flight Battery (FlyCart 30) | $2,349 each |
| DJI FlyCart 100 (aircraft only) | $18,999 |
| DJI FlyCart 100 Ready-to-Fly Basic Kit | $29,672 |
| DJI FlyCart 100 Ready-to-Fly Kit with Winch | $40,671 |
Beyond the aircraft, a realistic operating budget includes spare battery sets, charging infrastructure and a generator for field use, payload accessories, liability and hull insurance, pilot training, and the time required for FAA approvals. Because configurations vary so much by mission, most organizations are better served by a tailored quote that bundles the aircraft, batteries and delivery system into one coherent package. You can compare the full lineup in the DJI FlyCart Series collection.
FAA Rules for Heavy-Lift Drones
This is where cargo drones differ most from camera drones. FAA Part 107 covers small unmanned aircraft weighing less than 55 lbs (25 kg) at takeoff, including payload. Both FlyCart models exceed that limit, so commercial operations generally require additional FAA authorization, most commonly an exemption under 49 U.S.C. 44807, together with the conditions that come with it. Carrying property for compensation can also raise air carrier questions under other parts of the federal aviation regulations.
Two further points to plan for:
- Remote pilot certification and Remote ID: pilots still need the appropriate FAA certificate, and the aircraft must meet Remote ID requirements. Our Part 107 guide covers the baseline.
- Airspace and BVLOS: many delivery routes would be most efficient beyond visual line of sight, which requires separate approval and is an area of active rulemaking.
Regulations change, and exemption conditions are specific to each operator. Check current FAA guidance and consider an aviation attorney or consultant before committing to a delivery program.
Getting Started With Scanixx
Scanixx supplies the DJI FlyCart platforms from U.S. supply, with a written warranty and expert support by email and chat. For fleet or program purchases, our enterprise team prepares a custom quote covering aircraft, battery sets, charging, winch or lifting systems and accessories, matched to your load and route profile.
Request a custom quote for a heavy-lift drone program. A specialist replies within 24 hours on business days.
Frequently Asked Questions
How much weight can a heavy-lift drone carry?
It depends on the platform. The DJI FlyCart 30 carries up to 66 lbs (30 kg) with dual batteries or 88 lbs (40 kg) with a single battery. The DJI FlyCart 100 is rated for up to 187 lbs (85 kg) in its dual-battery configuration.
What is the range of the DJI FlyCart 30?
DJI rates the FlyCart 30 for up to 17.4 mi (28 km) without payload and up to 9.9 mi (16 km) carrying 66 lbs (30 kg) on dual batteries. Wind, temperature and altitude reduce real-world range.
Can I fly a FlyCart under Part 107?
Part 107 applies to drones under 55 lbs (25 kg) at takeoff. The FlyCart models are heavier, so commercial operations typically require an FAA exemption and additional approvals. Check current FAA guidance before operating.
Do I need a winch?
Only if the aircraft cannot land at the drop point. Winches allow delivery into tree cover, onto towers, rooftops or vessel decks while the drone hovers, and add flexibility for search and rescue work.
Is the FlyCart 100 always better than the FlyCart 30?
No. The FlyCart 100 carries far more, but its rated range is shorter. For loads under 66 lbs (30 kg) on longer routes, the FlyCart 30 is often the more efficient choice.
