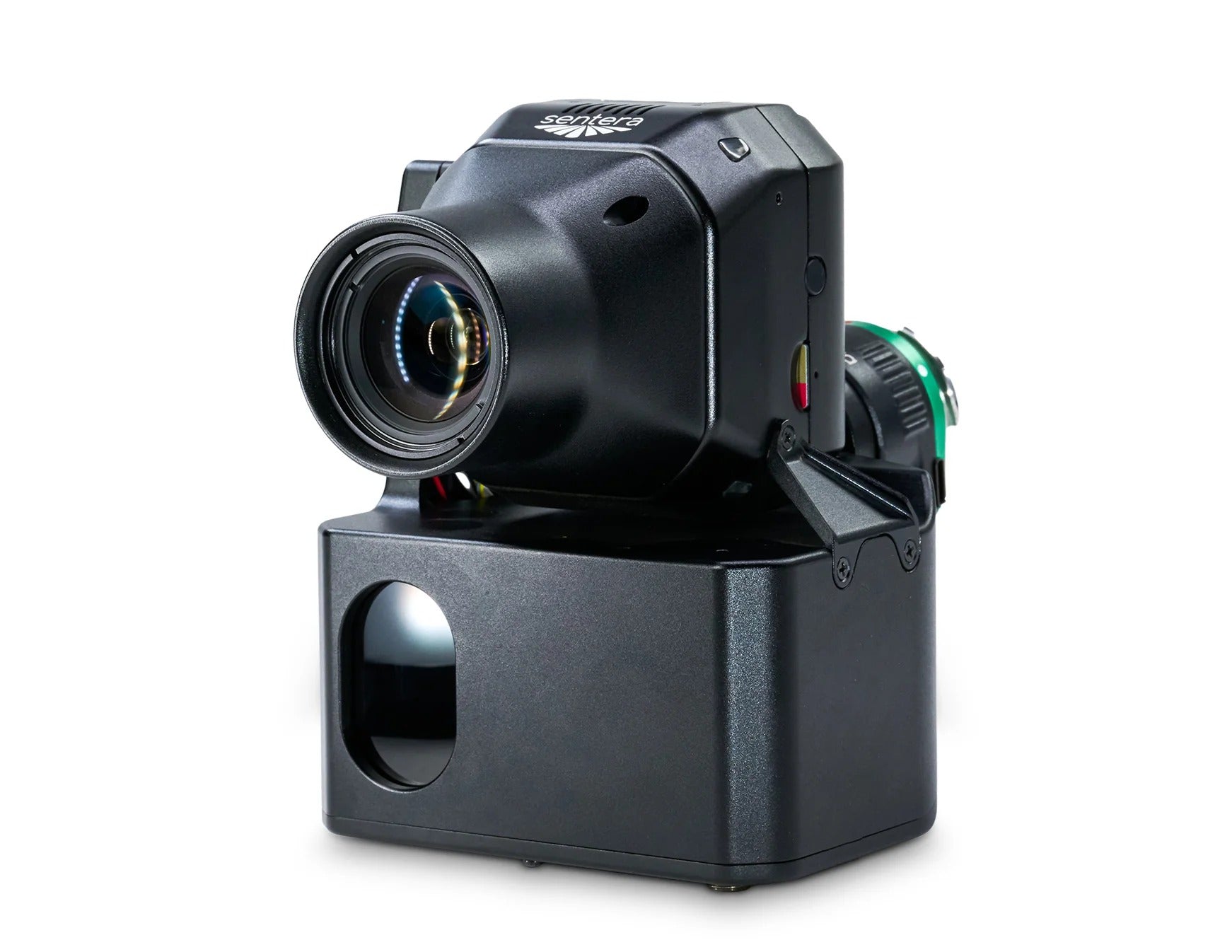

Sentera 65R Direct Georeferencing System, M300/350

In Stock – Ready to Ship
$36,900.00
$36,900.00

Estimated Delivery: 2 - 6 weeks

Need advice or a custom quote? --> Ask an Expert

Authorized reseller — full manufacturer warranty

The Sentera 65R Direct Georeferencing System (DGR) is a high-precision aerial imaging solution designed for the DJI Matrice 300 and M350 RTK platforms. Combining Sentera’s ultra-sharp 65-megapixel RGB sensor with a fully integrated direct georeferencing module, it enables centimeter-level mapping accuracy — no ground control points required.

Built for mapping, surveying, and inspection professionals, the 65R DGR captures distortion-free imagery with precise GNSS and IMU synchronization for each exposure. This powerful integration minimizes workflow complexity while maximizing data integrity, making it the go-to payload for industrial and scientific-grade aerial missions.

Expert support before, during, and after purchase

Our drone specialists are here to help with product advice, setup questions, and ongoing support — whenever you need us.

Secure U.S. fulfillment with full tracking provided

All orders are processed quickly and shipped directly from our U.S. warehouse — No overseas wait times.

Confidence guaranteed — safe payments & easy returns

We use trusted payment providers like Shopify Payments, PayPal, Airwallex and major credit cards, ensuring your transaction is secure and encrypted. Not satisfied? Simply return your product within 30 days for a refund — no questions asked.

Performance Advantages

  • Centimeter-Level Accuracy – Achieve true direct georeferencing with full DJI RTK compatibility — eliminate ground control points entirely.
  • Ultra-High Resolution – The 65MP RGB global shutter sensor captures fine surface detail for precise 3D reconstruction and mapping.
  • Seamless DJI Integration – Uses DJI SkyPort interface for native operation, telemetry sync, and flight control visibility.
  • Streamlined Data Workflow – Automatically embeds timestamped GNSS + IMU metadata into every image, reducing post-processing time.
  • Industrial-Grade Build – Lightweight aluminum housing resists vibration, dust, and temperature extremes for reliable performance in the field.
  • Mission Efficiency – Designed to cover large areas quickly while maintaining sub-centimeter consistency across datasets.

The Sentera 65R Direct Georeferencing System (DGR) is a high-precision aerial imaging solution designed for the DJI Matrice 300 and M350 RTK platforms. Combining Sentera’s ultra-sharp 65-megapixel RGB sensor with a fully integrated direct georeferencing module, it enables centimeter-level mapping accuracy — no ground control points required.

Built for mapping, surveying, and inspection professionals, the 65R DGR captures distortion-free imagery with precise GNSS and IMU synchronization for each exposure. This powerful integration minimizes workflow complexity while maximizing data integrity, making it the go-to payload for industrial and scientific-grade aerial missions.

Specifications

  • Model: Sentera 65R DGR
  • Compatible Drones: DJI Matrice 300 RTK / M350 RTK
  • Sensor Type: RGB Global Shutter
  • Resolution: 65 Megapixels
  • Image Dimensions: 9344 × 7008 pixels
  • Pixel Size: 3.45 μm
  • Lens Options: 24mm / 35mm (interchangeable)
  • Dynamic Range: 70 dB
  • Exposure Control: Manual or Auto via DGR Controller
  • Georeferencing: RTK/PPK (GNSS + IMU timestamp synchronization)
  • Interface: DJI SkyPort V2.0
  • Data Format: GeoTIFF / JPEG / EXIF Metadata
  • Weight: 420 g (sensor + DGR)
  • Operating Temp: -10°C to +50°C
  • Power Input: 5–24V DC
  • Color: Black / Graphite

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What’s in the Box

  • Sentera 65R RGB Sensor
  • DGR Module (Direct Georeferencing System)
  • DJI SkyPort Mount Assembly
  • Power and Data Cables
  • Lens (24mm or 35mm)
  • Calibration Certificate
  • User Documentation

  • Protective Carry Case
